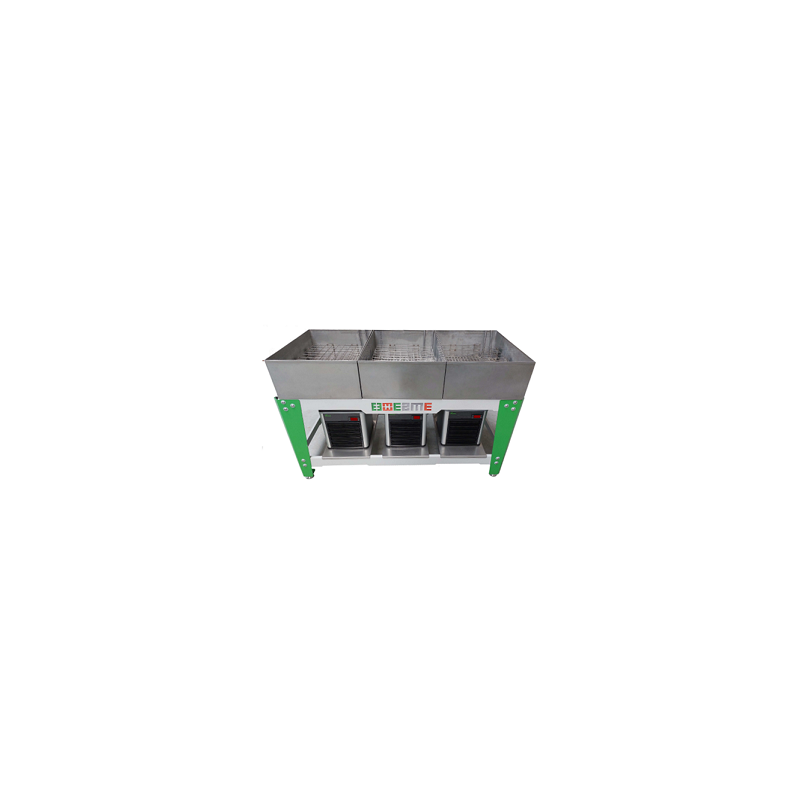

Bain de conservation des éprouvettes
Norme : NF EN196-1
Cet équipement permet la conservation d’éprouvettes mortier prismatiques 40*40*160mm immergées verticalement dans 3 bains séparés avec eau régulée à 20°C.
- 1 Robust steel frame with 3 separate storage tanks
- 3 storage tanks with totally separated water in stainless steel 316L (Dimensions 500*675*200 mm)
- Storage capacity per tank: 114 mortar samples immersed vertically in water
- Unitary separation of the test tubes (opening 50mm) by removable openwork grids
- Drain located under each tank
- Safety overflow evacuation by pipe for each tank
- 3 thermostatically controlled hot/cold units to regulate the water temperature in a closed circuit at 20 +/-1°C
- Adjustment and indication of the water temperature with a resolution of 0.1°C
- 3 circulation pumps with coil exchanger for water temperature homogenization
- Operating conditions: room temperature 20+/- 5°C
- Power supply: 240 VAC/ 50 Hz
- Power: 3300 W max.
- Dimensions : 170 x 80 x 110 cm
- Note : The thermostatic groups use ecological gas R290
